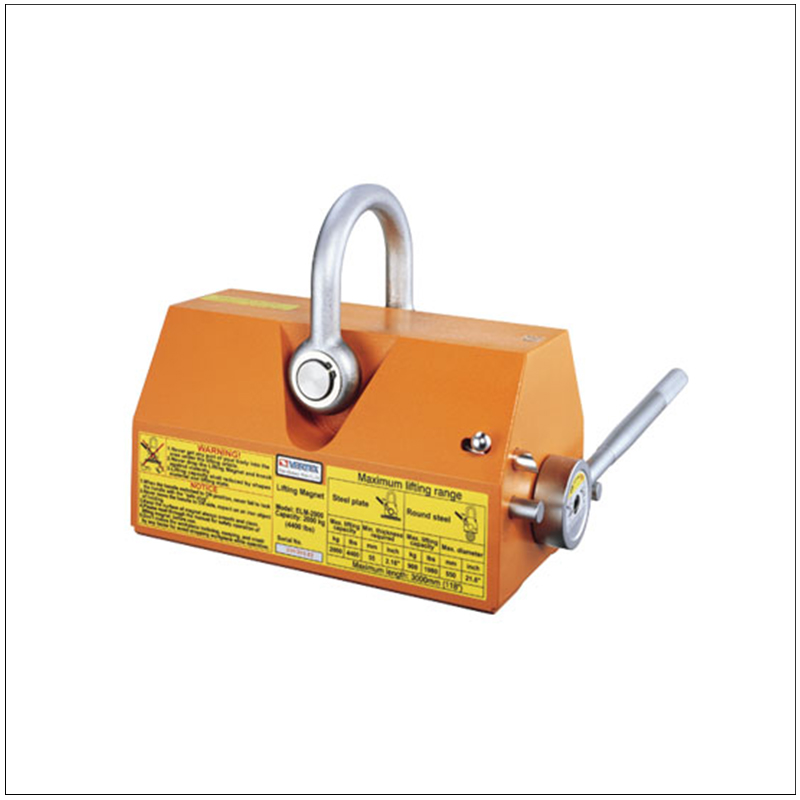

Permanent Magnetic Lifter (ON/OFF Type)
| FORM OF MATERIAL | SIZE | STEEL PLATE | ROUND STEEL | |||||||||
|
ORDER NO. |
L |
W |
H |
Min. Lifting
Capacity |
Min. Thickness
Required |
Max. Lifting Capacity | Max. Diameter |
CODE NO. |
||||
| kg | lbs | mm | inch | kg | lbs | mm | inch | |||||
| VML-100 | 107 | 60 | 120 | 100 | 220 | 15 | 0.59 | 45 | 99 | 150 | 5.9 | 2018-060 |
| VML-300 | 180 | 90 | 156 | 300 | 660 | 25 | 0.98 | 135 | 300 | 250 | 9.8 | 2018-061 |
| VML-600 | 255 | 115 | 212 | 600 | 1320 | 30 | 1.18 | 270 | 600 | 350 | 13.8 | 2018-062 |
| VML-1000 | 280 | 165 | 286 | 1000 | 2200 | 40 | 1.57 | 450 | 990 | 450 | 17.8 | 2018-063 |
| VML-2000 | 422 | 216 | 348 | 2000 | 4400 | 55 | 2.16 | 900 | 1980 | 550 | 21.6 | 2018-064 |
