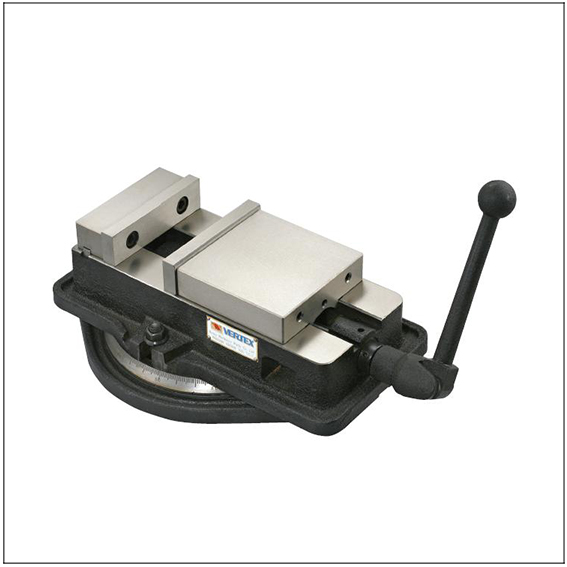

Angle-fixed Milling Vise

FEATURES Angle lock & rotate milling vise

  1. Use highest quality ductile Iron 80000 PSI for minimum bending.
  2.     The enclosed lead screw and sliding surface are harden and ground.
  3.     Highest clamping power. It’s very accurate and durable.
  4.     This Vise is so designed that the horizontal force generated by tightening the handle pushes the semi-sphere within the movable jaw and thus thrusts the movable jaw downward. Therefore, the workplace does not move up, even if it is held at the top of the jaw plates.
  5.     Four setting positions of the jaw plates are available, widening the jaw plates opening.
  6.     The new VD675,VA-8L have two major improvements: a wide opening jaw and a new stationary jaw that features an intergral key,larger fasteners which reduce deflection by 50%

Compare

Angle-Fixed Milling Vise

ORDER NO. W OPENED L H CODE NO.
VA-4 106 103 324 96 1002-030
VA-5 135 110 359 101 1002-031
VA-6 155 150 422 118 1002-032
VA-8 210 197 553 145 1002-033
VD-675 160 190 445 121 1002-034
VD-690 155 230 450 118 1002-034B
VD-810 205 275 555 147 1002-035B
