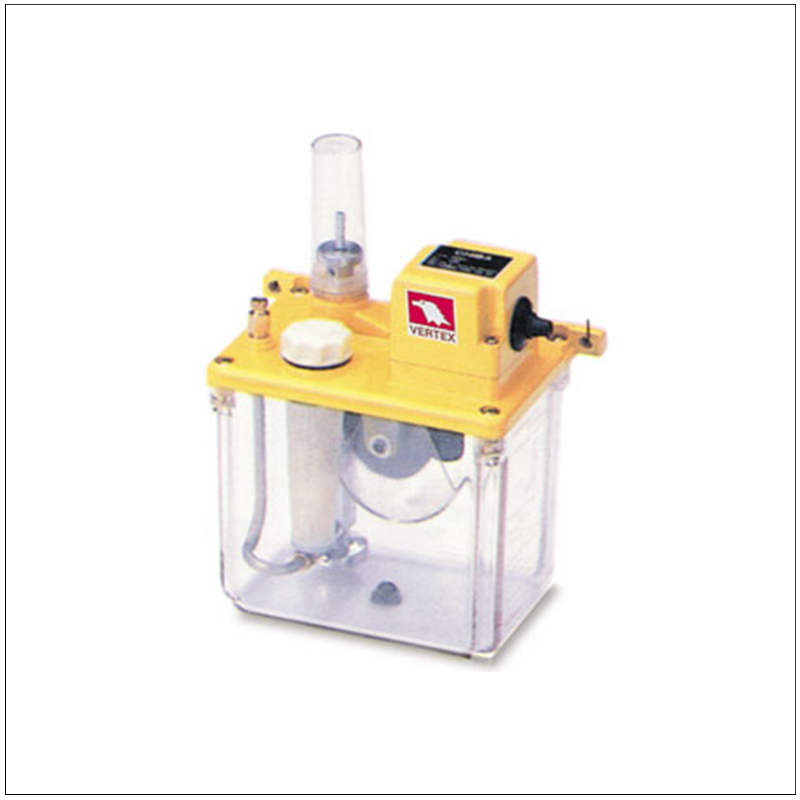

Electrical Automatic Pump SMA Model
Electrical automatic pump SMA model
The out standing performances of SMA models belong to intermittent oil supply pumps whose specification are classed into four kinds by the intermittent time and the discharged amount is adjustable within the range of 1~3c.c.
Electrical Automatic Pump
| ORDER NO. | FREQUENCY (TIME/MIN) | DISCHARGED AMOUNT (C.C/ST) | MAX. DISCHARGED PRESSURE (KG/CM²) | CAPACITY | CODE NO. |
| SMA-3 | 5,10,15,30,60 | 1-3 | 3 | 2 | 1026-090 |
| SMA-6 | 3- | 3 | 2 | 1026-091 | |
| SMA-8.5 | 4-8.5 | 3 | 2 | 1026-092 | |
| Motor’s voltage is AC 110V or 220V | |||||
